Game Boy Zero

Parts List

Button Prep

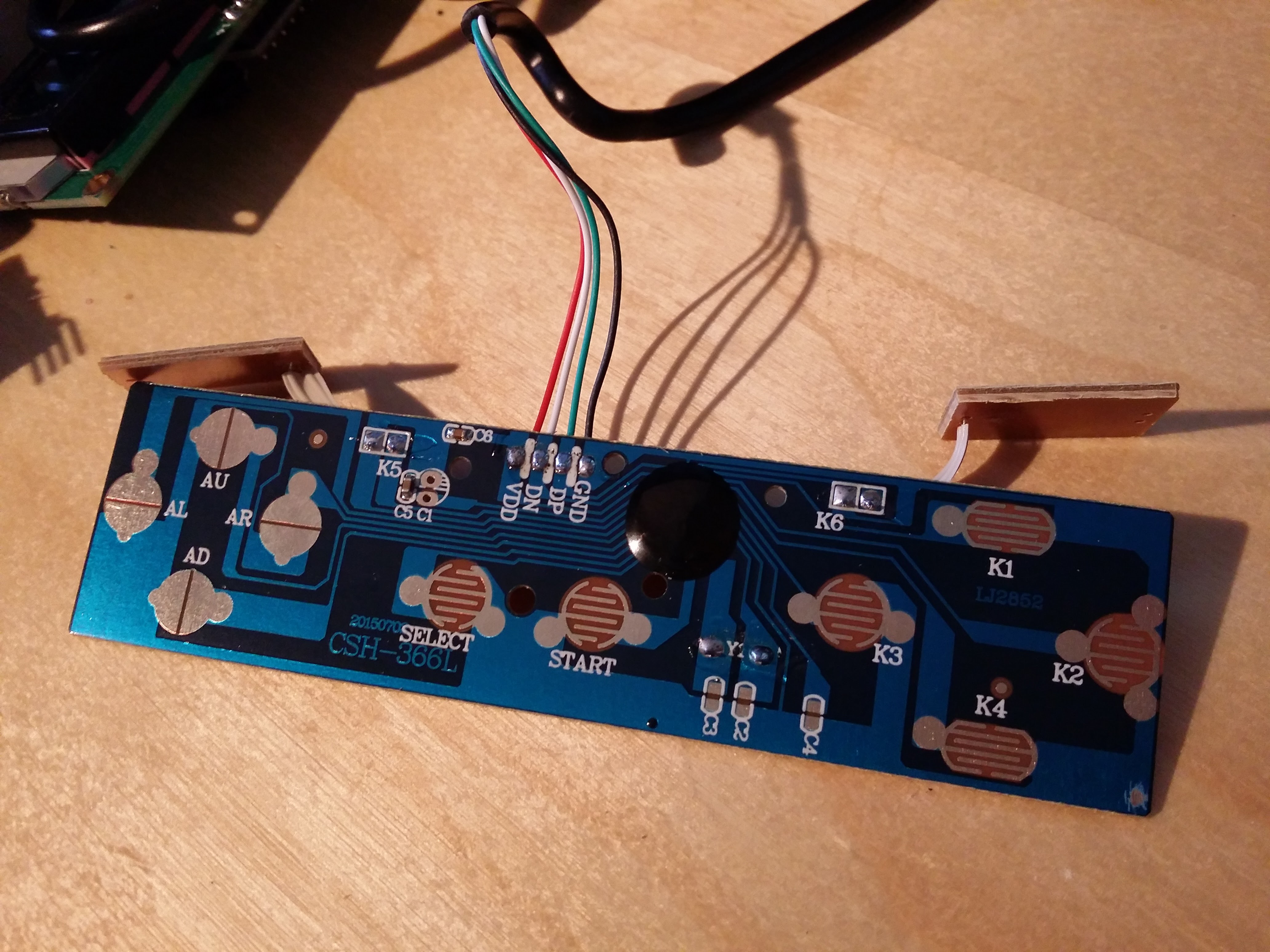

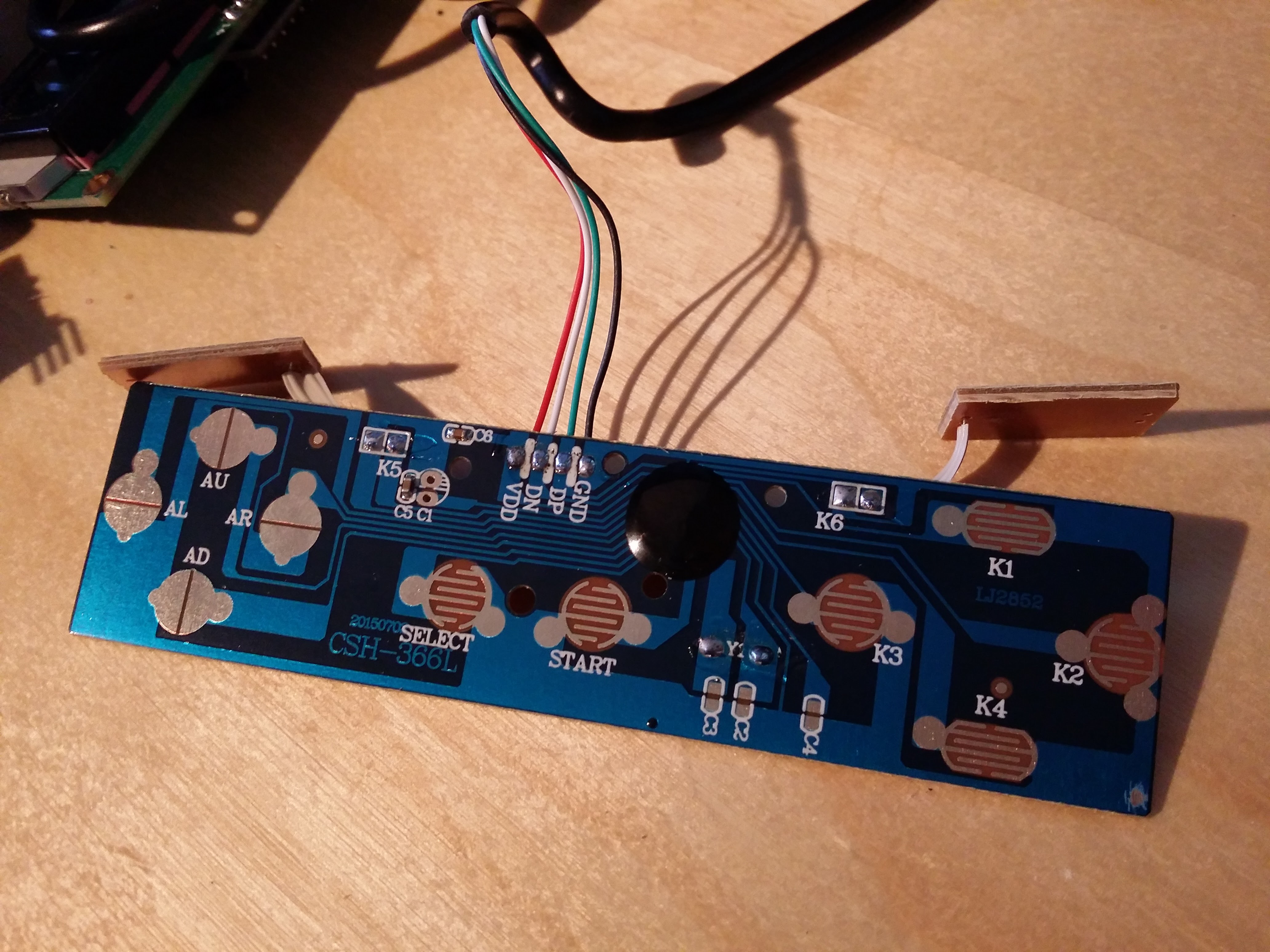

  • Open SNES Controller and remove PCB

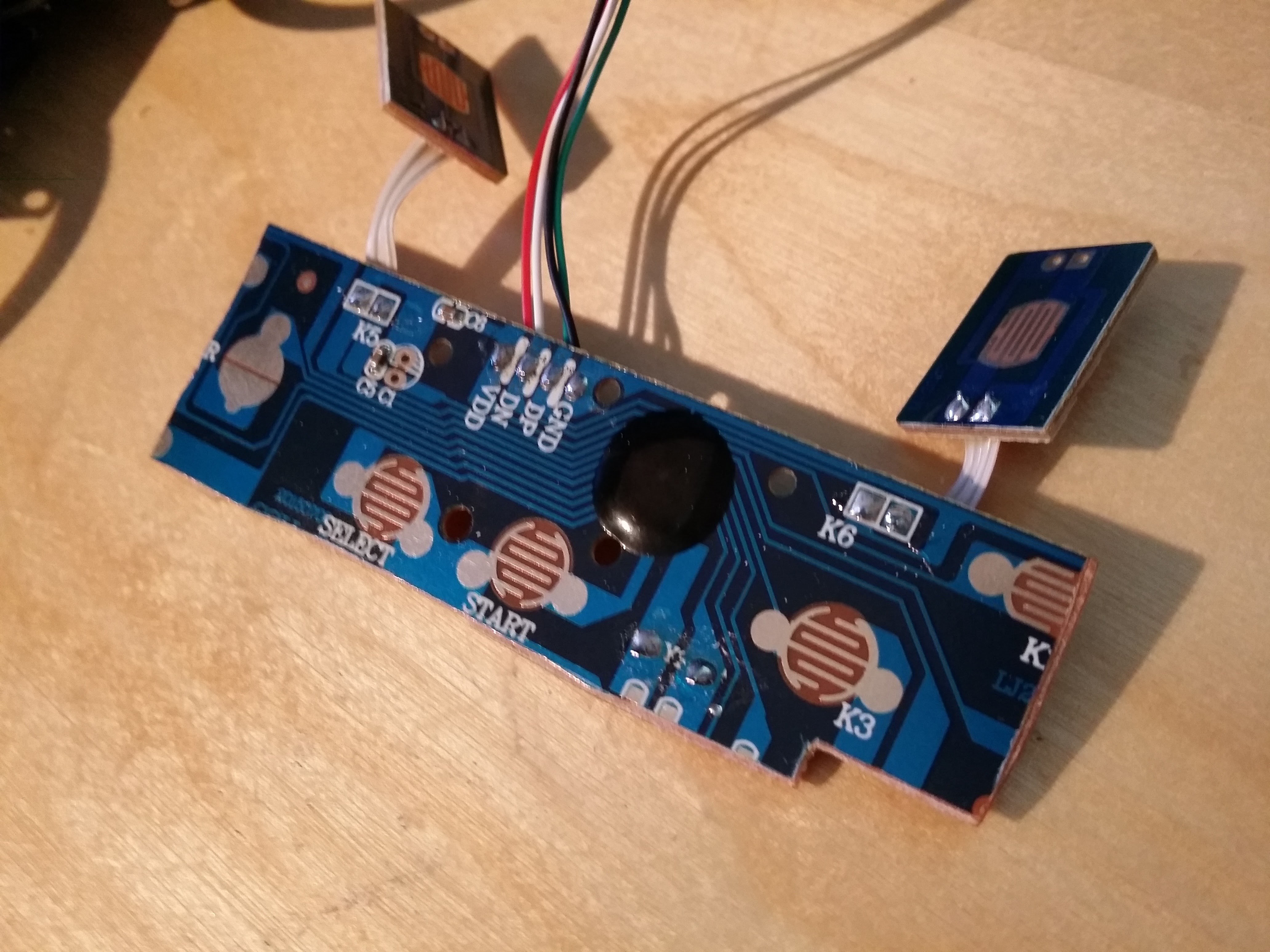

  • Cut PCB to a smaller size

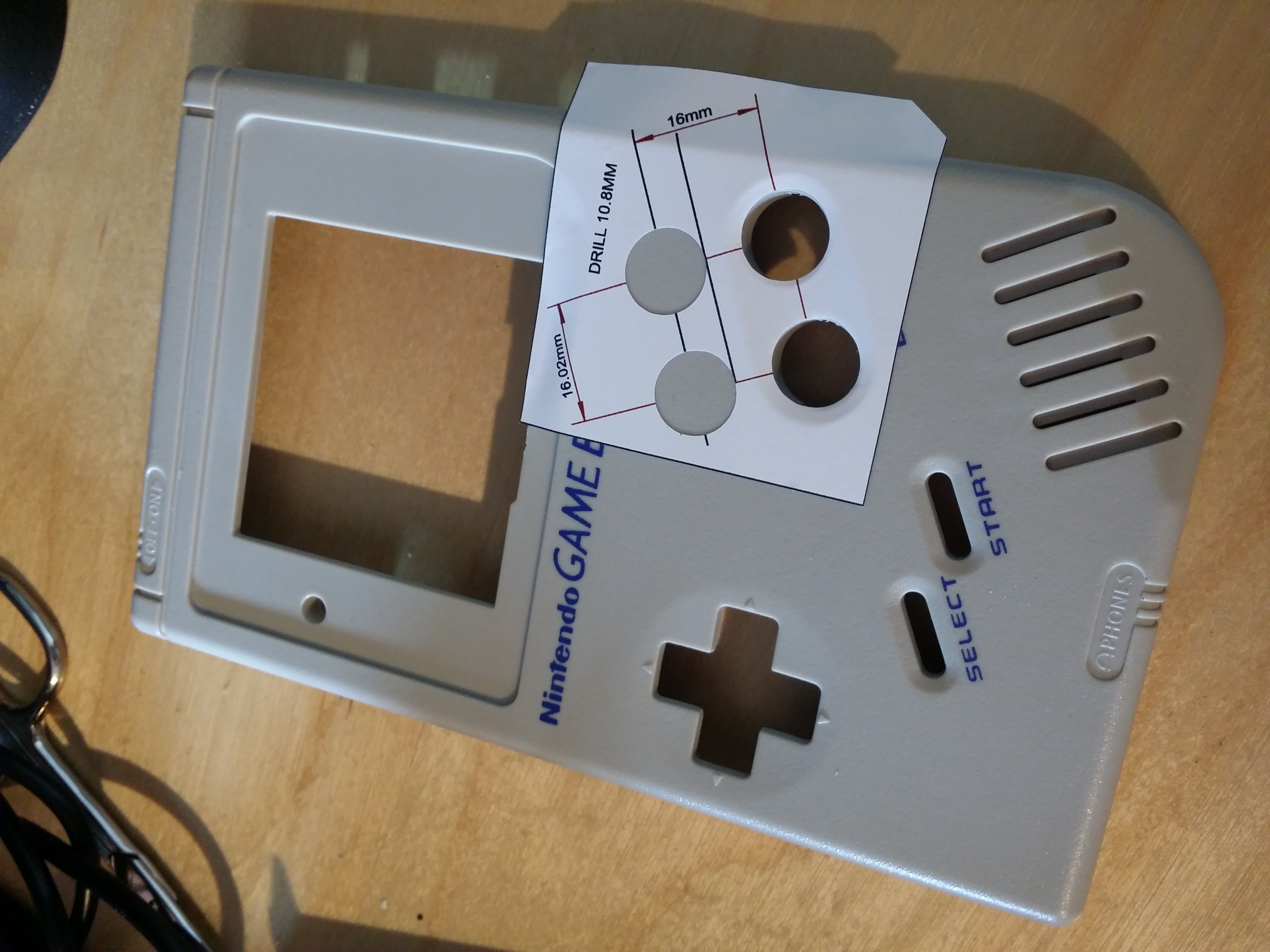

Cut buttons holes

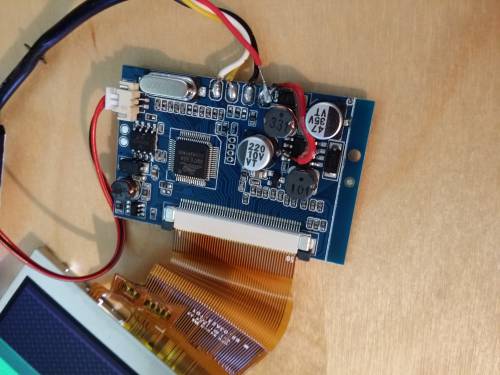

Display Modification to run on 5V

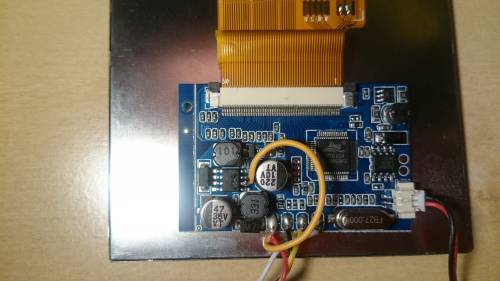

Connect Pin 2 on IC to 5+ directly

LCD Setup

wget http://www.waveshare.com/w/upload/2/24/LCD-show-160520.tar.gz
tar xvf LCD-show-YYMMDD.tar.gz
cd LCD-show/
sudo ./LCD35-show

Back to hdmi out:

cd LCD-show/
sudo ./LCD-hdmi

http://www.waveshare.com/wiki/3.5inch_RPi_LCD_(A)#Programming_the_image_file

https://www.raspberrypi.org/forums/viewtopic.php?f=45&t=137149

/boot/config.txt
dtparam=spi=on
dtoverlay=waveshare35a
/boot/cmdline.txt
fbcon=map:1
/boot/config.txt
dtparam=i2c_arm=on
hdmi_force_hotplug=1
hdmi_cvt=320 240 60 1 0 0 0
hdmi_group=2
hdmi_mode=87

dtoverlay=waveshare35a:rotate=270,swapxy=1,speed=41000000,fps=50
/etc/udev/rules.d/95-ads7846.rules
SUBSYSTEM=="input", KERNEL=="event[0-9]*", ATTRS{name}=="ADS7846*", SYMLINK+="input/touchscreen"
/etc/pointercal
-26 -8689 33949688 -5739 -126 22326060 65536
/etc/X11/xorg.conf.d/99-fbdev.conf
Section "Device"
  Identifier "myfb"
  Driver "fbdev"
  Option "fbdev" "/dev/fb1"
EndSection
/etc/X11/xorg.conf.d/99-calibration.conf
Section "InputClass"
        Identifier      "calibration"
        MatchProduct    "ADS7846 Touchscreen"
        Option  "Calibration"   "3932 300 294 3801"
        Option  "SwapAxes"      "1"
EndSection
sudo mv /usr/share/X11/xorg.conf.d/99-fbturbo.conf ~

https://learn.adafruit.com/running-opengl-based-games-and-emulators-on-adafruit-pitft-displays/pitft-setup

sudo apt-get update
sudo apt-get install cmake git
git clone https://github.com/tasanakorn/rpi-fbcp
cd rpi-fbcp/
mkdir build
cd build/
cmake ..
make
sudo install fbcp /usr/local/bin/fbcp
/usr/local/bin/fbcp &

sudo nano /etc/rc.local

sudo dpkg-reconfigure console-setup
Select “UTF-8”, “Guess optimal character set”, “Terminus” and “6x12 (framebuffer only).”


dtoverlay=pitft28-resistive-overlay,rotate=90,speed=80000000,fps=60
